The following jsonb extract expressions will be used to get values from the json data array of a table.

  • jsonb_extract_path   ---- this expression specifies the PATH necessary to get the last field entered in the path; the result is a json object and will display in double quotes
  • jsonb_extract_path_text   ---- this expression does the same thing as jsonb_extract_path, but returns a TEXT object (displays without quotes)
  • jsonb_array_elements   ---- this expression is used for extracting values within an array object
  • the operator #>>. The format for using this operator is: table_name.jsonb #>> '{path_of_fields_in_the_hierarchy_separated_by_commas}'
    • Example: audit_loan.jsonb #>> '{loan, metadata, updatedByUserId}'  -- this will get the value for "updatedByUserId" (the result is in Text format)

Extracting "First Level" Data Fields

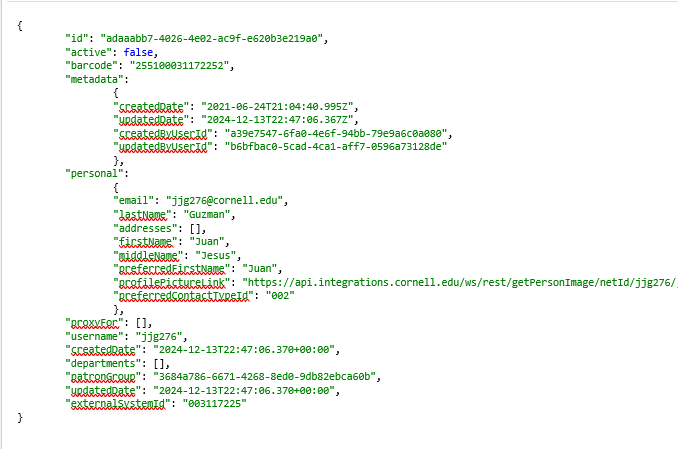

Example: In the data array of the folio_users.user table (screenshot below), the field 'active' (a boolean value showing patron status) is a "first level" hierarchical field. Other first-level fields include: id, barcode, metadata, personal, proxyFor, username, createdDate, departments, patronGroup, updatedDate and externalSystemId.



You will see that some of the first-level fields have subordinate data in second-levels fields ("metadata" and "personal" have subordinate fields). The following query will get the data out of first-level fields, when those fields don't have subordinate fields:


SELECT
     users.id AS user_id,
     jsonb_extract_path_text (users.jsonb, 'active')::boolean AS patron_status  – "active" is a boolean value (true or false)
FROM folio_users.users

The following expression will also get the value for "active":

SELECT
     users.id AS user_id,
     users.jsonb #>> '{active}" AS patron_status
FROM folio_users.users


Extracting "Second Level" Data Fields

In the example below, 'lastName' and 'firstName' are both "second-level" fields found under "personal."

SELECT
     users.id AS user_id,
     jsonb_extract_path_text (users.jsonb, 'personal', 'lastName') AS user_last_name,
     jsonb_extract_path_text (users.jsonb, 'personal', 'firstName') AS user_first_name
FROM
     folio_users.users


The following expression will also get "lastName" and "firstName":

SELECT
     users.id AS user_id,
     users.jsonb #>> '{personal, lastName}' AS user_last_name
     users.jsonb #>> '{personal, firstName}' AS user_first_name
FROM
     folio_users.users

Extracting "Third level" Data Fields

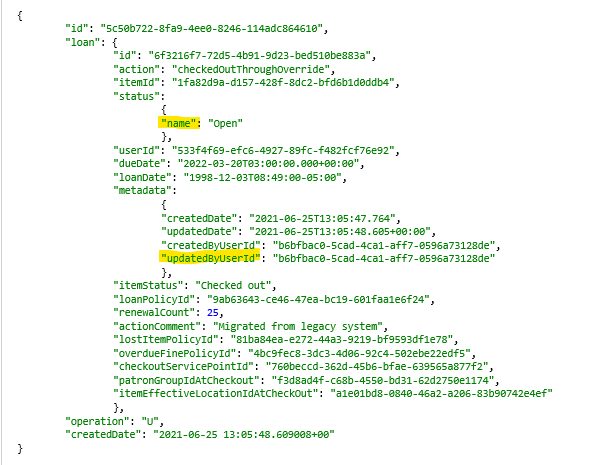

Some tables, such as the folio_circulation.audit_loan table, have third-level data fields that are comprised of text objects (they can also have array objects, but that is covered in the next section – note: array objects can appear at any level within the json data). The json statement for extracting third-level text fields is exactly the same as for first- and second-level data fields, except there are three fields listed in the parentheses, instead of just one or two.

In this example, "name" and "updatedByUserId" are third-level fields.


This is the code to extract them. Note that the fields listed within the parentheses must be in the same hierarchical order as they appear in the json data.

SELECT
     audit_loan.id AS audit_loan_id,
     jsonb_extract_path_text (audit_loan.jsonb, 'loan', 'status', 'name') AS loan_status_name,
     jsonb_extract_path_text (audit_loan.jsonb, 'loan', 'metadata', 'updatedByUserId') AS loan_updated_by_user_id
FROM
     folio_circulation.audit_loan

The following expression will also get the third-level values:

SELECT
     audit_loan.id AS audit_loan_id,
     audit_loan.jsonb #>> '{loan, status, name}' AS loan_status__name,
     audit_loan.jsonb #>> '{loan, metadata, updatedByUserId}' AS loan_updated_by_user_id
FROM
     folio_circulation.audit_loan

Extracting Arrays

-- 1. Arrays embedded in text objects

In the previous examples, the elements being extracted were "text objects" within the table's JSON array, and were denoted by curly brackets { }. In this next example, we need to extract multiple values from an "array" object (denoted by square brackets [ ] ) that is embedded in a hierarchy of text elements. This calls for nested json extract statements, a structure very similar to what we used in Access with nested "GetField" and "GetXXXBLOB" functions.

When extracting arrays embedded in text objects, it's usually best to use a "cross join lateral" statement in the FROM stanza. This cross join creates a "json object" that can then be further extracted in the Select stanza. Warning: the records retrieved through a cross join will only be those that have the array elements you're looking for; records without those elements will drop out.  See "Alternative to using cross joins" (that captures all the records) at end of this page.

It's also possible to NOT use a cross join at all, but to nest the json extract statements in one long expression in the Select stanza. However, you lose the ability to include the ordinality of the values extracted. See Summary at the end of this page ("Three ways to extract arrays").

  • Nested extract statements are applied from the outside in. So the left-most json statement applies to the right-most element in the parentheses
  • The entire nested extract statement (created by the cross join) is a json object
  • That json object is then used in the select stanza to get the needed fields within it (by using another json extract statement on it)
    • Note that SQL performs the work in the FROM stanza before it performs the work in the SELECT stanza; that's how it knows about the json object you created through the cross join, and why you can use that object in the Select stanza

The example below uses the folio_users.custom_fields table, which has an embedded array called "values" containg three fields: "id","value" and "default".  The "Values"array is embedded within two preceding text objects:

  • "selectField" (text object) – topmost level
  • "options" (text object) – middle level
  • "values" (array object) – bottom level. This array object contains the fields we need: "id" and "value"

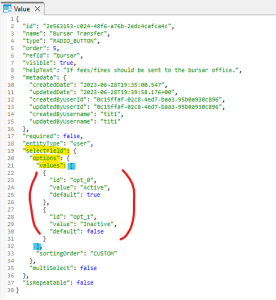

Here is what the custom_fields jsonb data array looks like:



The code to do that is:

SELECT

   cft.id AS custom_fields_id,

   cft.ref_id,

   cft.name AS custom_fields_name,

   jsonb_extract_path_text (values.jsonb,'id') AS value_id,  ----- this extracts the "id" element from the values object that we created in the cross join below

   jsonb_extract_path_text (values.jsonb,'value') AS value_name  ----- this extracts the "value" element from the values object that we created in the cross join below

           ------ NOTE: the two json extract statements above can be replaced by a shorthand formula, using the "#>>" operator:
                      values.jsonb #>> '{id}'
                      values.jsonb #>> '{value}'

FROM folio_users.custom_fields AS cf

CROSS JOIN LATERAL jsonb_array_elements (jsonb_extract_path (cf.jsonb, 'selectField', 'options', 'values')) AS values (jsonb)
----- "jsonb_array_elements" works on the 'values' array object at the end of the parentheses; we use this extract expression because "values" is an array
----- "jsonb_extract_path" looks for the path of elements to follow in order to get to the values array – the elements listed must be in the same hierarchical order as they appear in the table
----- the entire cross join statement produces a jsonb object which I named "values" (note: what you name this object is totally arbitrary - you could call it "stuff" if you felt like it – "stuff (jsonb)")

LEFT JOIN folio_users.custom_fields__t AS cft

ON jsonb_extract_path_text (cf.jsonb,'id')::UUID = cft.id

         ------ the custom_fields__t table has the custom fields id, the ref_id and the custom fields name (joining to this table is not required – I just wanted to include those fields in the results)

ORDER BY name, jsonb_extract_path_text (values.jsonb,'id'), jsonb_extract_path_text (values.jsonb,'value')


    • Note:
      • If you want to include "ordinality" as part of your results – this is the order in which the extracted values appear in the source record – you would insert "WITH ordinality" before "AS values (jsonb)":
               CROSS JOIN LATERAL jsonb_array_elements (jsonb_extract_path (cf.jsonb, 'selectField', 'options', 'values')) WITH ordinality AS values (jsonb)
      • Then you would add a line in the Select stanza to show the ordinality:  values.ordinality AS custom_fields_ordinality

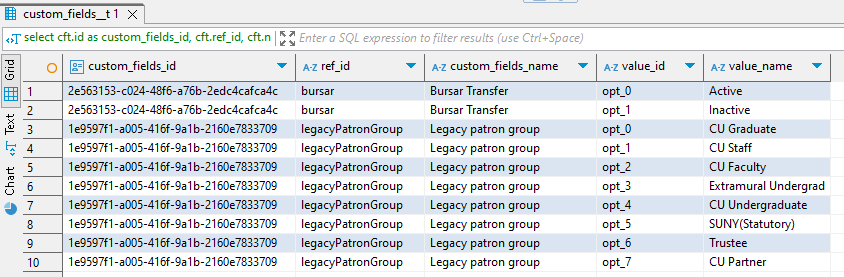

RESULT:


Extracting Arrays

-- 2. Array is at the top-most hierarchical level in a table

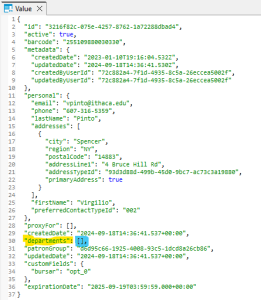

Sometimes you want to extract an array that is at the top-most hierarchical level of a table – that is, it is not embedded within any other object. An example of this is "departments" element in the folio_users.users table:


Because "departments" is an array, you still have to extract it with a cross join statement, as in the previous example. In the code below, I am using the shorthand method to extract the various elements:

SELECT
users.id AS user_id,
(users.jsonb #>> '{active}')::BOOLEAN AS patron_status,
CASE
WHEN (users.jsonb #>> '{active}')::BOOLEAN = true
THEN 'Active'
ELSE 'Expired'
END AS patron_status_name, -------- this Case When statement is just for displaying the boolean value as "Active" or "Expired"
users.jsonb #>>'{personal, lastName}' AS last_name, ------- this extrcts the last name from the "personal" object (second-level extraction)
users.jsonb #>>'{personal, firstName}' AS first_name, ------- this extracts the first name from the "personal' object (second-level extraction)
users.jsonb #>>'{username}' AS net_id, ------ this extracts "username" from the table (first-level extraction)
users.jsonb #>>'{barcode}' AS user_barcode, ------ this extracts "barcode" from the users table (first-level extraction)
depts.jsonb #>>'{}' AS dept_id, ----- this extracts the array values from the "depts" json object created through the cross join. Note that the curly brackets are empty; this is because there is no tag for the values, it's just the values themselves. If there were a tag for the values, the tag name would go in the curly brackets
ud.name AS department_name,
depts.ordinality AS dept_ordinality ------ this displays the ordinality of the departments (the sequence of occurrence in the record)
FROM folio_users.users
CROSS JOIN LATERAL jsonb_array_elements (jsonb_extract_path (users.jsonb,'departments'))
WITH ordinality AS depts (jsonb)
LEFT JOIN folio_users.departments__t AS ud -------- I am joining to the the departments__t table to get the department name
ON (depts.jsonb #>> '{}')::UUID = ud.id -------- note that I'm using the shortcut expression to join to the id in the departments__t table

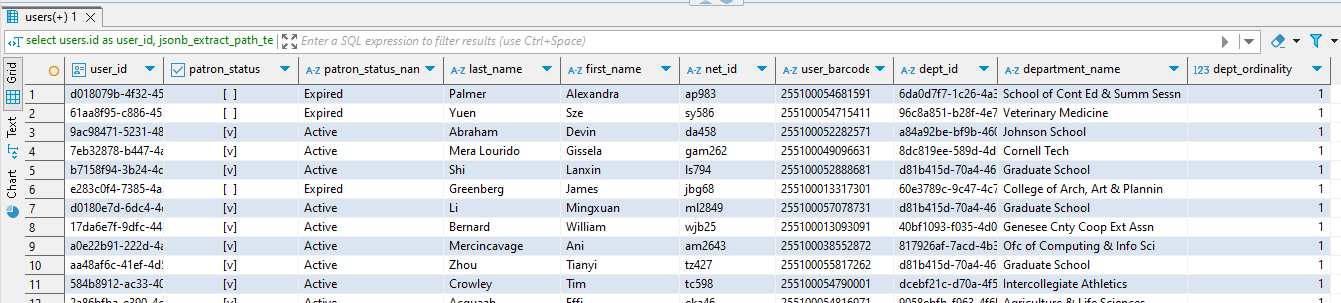

RESULT:


3. Extracting Arrays - Summary: Three ways to extract arrays

This illustrates three methods for extracting an embedded array from the folio_users.custom_fields table (example)


-- 1. No cross join -- just use triple-nested json extract statements in the Select clause


SELECT

cft.id AS custom_fields_id,

cft.ref_id,

cft.name AS custom_fields_name,

jsonb_extract_path_text (jsonb_array_elements (jsonb_extract_path (cf.jsonb, 'selectField', 'options', 'values')),'id') AS value_id,

jsonb_extract_path_text (jsonb_array_elements (jsonb_extract_path (cf.jsonb, 'selectField', 'options', 'values')),'value') AS value_name


FROM folio_users.custom_fields AS cf

LEFT JOIN folio_users.custom_fields__t AS cft

ON jsonb_extract_path_text (cf.jsonb,'id')::UUID= cft.id


ORDER BY name, value_id, value_name

;


-- 2. Use a cross join and put the result in a single-level json extract statement in the Select clause


SELECT

cft.id AS custom_fields_id,

cft.ref_id,

cft.name AS custom_fields_name,

jsonb_extract_path_text (values.jsonb,'id') AS value_id,

jsonb_extract_path_text (values.jsonb,'value') AS value_name


FROM folio_users.custom_fields AS cf

CROSS JOIN LATERAL

jsonb_array_elements (jsonb_extract_path (cf.jsonb, 'selectField', 'options', 'values'))

AS values (jsonb)


LEFT JOIN folio_users.custom_fields__t AS cft

ON jsonb_extract_path_text (cf.jsonb,'id') :: UUID= cft.id


ORDER BY name, jsonb_extract_path_text (values.jsonb,'id'), jsonb_extract_path_text (values.jsonb,'value')

;


-- 3. Use a cross join but use the shortcut method in the Select clause to get the values in the array


SELECT

cft.id AS custom_fields_id,

cft.ref_id,

cft.name AS custom_fields_name,

values.jsonb #>> '{id}' AS value_id,

values.jsonb #>> '{value}' AS value_name


FROM folio_users.custom_fields AS cf

CROSS JOIN LATERAL

jsonb_array_elements (jsonb_extract_path (cf.jsonb, 'selectField', 'options', 'values'))

AS values (jsonb)


LEFT JOIN folio_users.custom_fields__t AS cft

ON jsonb_extract_path_text (cf.jsonb,'id') :: UUID= cft.id


ORDER BY name, jsonb_extract_path_text (values.jsonb,'id'), jsonb_extract_path_text (values.jsonb,'value')

---- can also use:   ORDER BY name, values.jsonb #>> '{id}', values.jsonb #>> '{value}'


4. Extracting Arrays - Alternatives to using cross joins, and how to prevent records without the array elements from dropping out

Cross join lateral queries will return only those records that have all the array elements you are trying to find. It's possible to use multiple cross join statements in the FROM stanza to get multiple array values (for example, subjects, contributors and languages from the instance table) - but the results will show only those records that have ALL the array elements specified in the cross joins.

If you want to find records that have any or all of the particular array fields, AND show all the records that don't have any of those array fields, the better plan is to do a 2-part query.

    • First, create a query that has a nested jsonb extract statement (in the Select clause) for EACH of the arrays you're trying to extract (example below) – do not use cross joins
      • if you want to use cross joins, create one cross join query for each array field that you want to extract; don't combine all the extracts in one cross-join query
      • You will have to left-join each of the query results to the all-records query (created in the second step)
    • Second, create a query that finds all records from the source table (for example, get all instance ids from the folio_inventory.instance table), and left-join the results of the first query (or queries) to it


In this example, we're finding three array elements from the folio_inventory.instance table: contributors, languages, and subjects, then joining the result to a complete set of instance records.


WITH recs AS    ----- Get the array elements for contributors, languages and subjects using nested jsonb extract statements in the Select clause
(SELECT
    ii.id,
    ii.jsonb #>> '{hrid}' AS instance_hrid, ---- first level text extract
    ii.jsonb #>> '{title}' AS title, ---- first level text extract
    jsonb_extract_path_text (jsonb_array_elements (jsonb_extract_path (ii.jsonb, 'contributors')),'name') AS contributors, -- contributors array extract (second-level extract)
    (jsonb_array_elements (jsonb_extract_path (ii.jsonb,'languages'))) #>>'{}' as languages, ----- languages array extract (top-level extract) – note the empty curly brackets
    jsonb_extract_path_text (jsonb_array_elements (jsonb_extract_path (ii.jsonb, 'subjects')),'value') as subjects ----- subject array extract (second-level extract)

FROM folio_inventory.instance AS ii
)

SELECT     ------- Get all the records from the instance__t table; left join the results of the first query that got the array elements
    instance__t.id,
    instance__t.hrid,
    instance__t.title,
    string_agg (distinct recs.contributors,' | ') as contributors_aggregated,
    string_agg (distinct recs.languages,' | ') as languages_aggregated,
    string_agg (distinct recs.subjects,' | ') as subjects_aggregated

FROM folio_inventory.instance__t
    LEFT JOIN recs
    ON instance__t.id = recs.id

GROUP BY
    instance__t.id,
    instance__t.hrid,
    instance__t.title
;


;

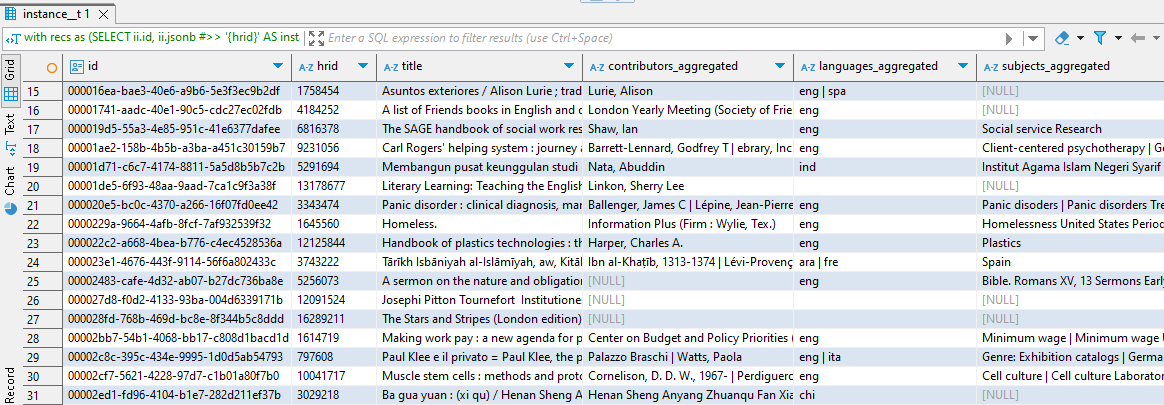

RESULT:



Use "left join lateral" to get all selected records from the instance table, whether they have data is the sepecified arrays or not:

The following example gets array values for six arrays in the Instance table, but shows the records that don't have values as well (accomplishes the same results as a cross join lateral with a link to the orginal instance table, more quickly and easily!)


select
    instance.id,
    instance.jsonb#>>'{hrid}' as instance_hrid,
    holdings_record__t.hrid as holdings_hrid,
    instance.jsonb#>>'{title}' as title,
    string_agg (distinct editns.jsonb#>>'{}',' | ') as editions,
    string_agg (distinct pub.jsonb#>>'{place}',' | ') as publication_place,
    string_agg (distinct pub.jsonb#>>'{publisher}',' | ') as publisher,
    string_agg (distinct pub.jsonb#>>'{dateOfPublication}',' | ') as date_of_publication,
    string_agg (distinct subj.jsonb#>>'{value}',' | ') as subjects,
    string_agg (distinct notesext.jsonb#>>'{note}',' | ') as instance_notes

from folio_inventory.instance
    left join lateral jsonb_array_elements (jsonb_extract_path (instance.jsonb,'editions')) as editns (jsonb)
    on true

    left join lateral jsonb_array_elements (jsonb_extract_path (instance.jsonb,'subjects')) as subj (jsonb)
    on true

    left join lateral jsonb_array_elements (jsonb_extract_path (instance.jsonb,'notes')) as notesext (jsonb)
    on true

    left join lateral jsonb_array_elements (jsonb_extract_path (instance.jsonb,'publication')) as pub (jsonb)
    on true

    left join folio_inventory.holdings_record__t
    on instance.id = holdings_record__t.instance_id

group by
    instance.id,
    instance.jsonb#>>'{hrid}',
    holdings_record__t.hrid,
    instance.jsonb#>>'{title}'
    ;

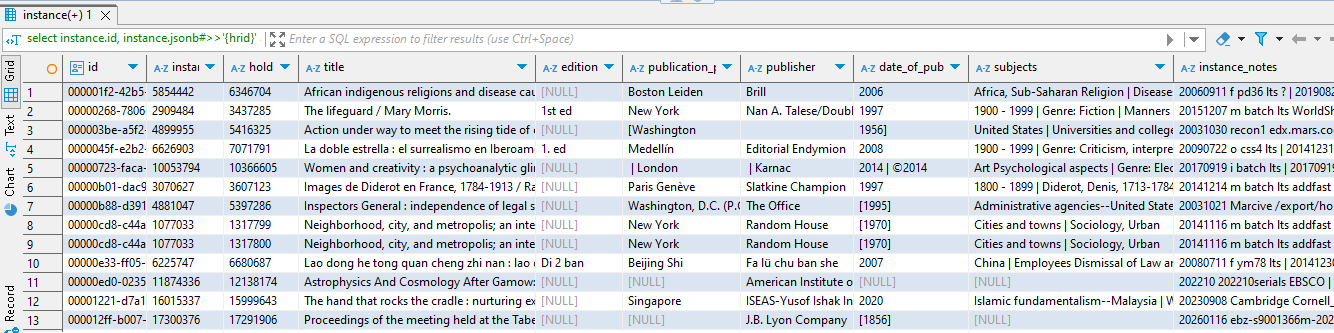

RESULT:
