AutoCAD Chemical Stock Tank Program

 The AutoCAD algorithm was written to draw the chemical stock tank with the correct dimensions at the correct origin. The programming algorithm can be found in the MathCAD file "AlumTank" in the Final Designs folder on the AguaClara sourceforge.

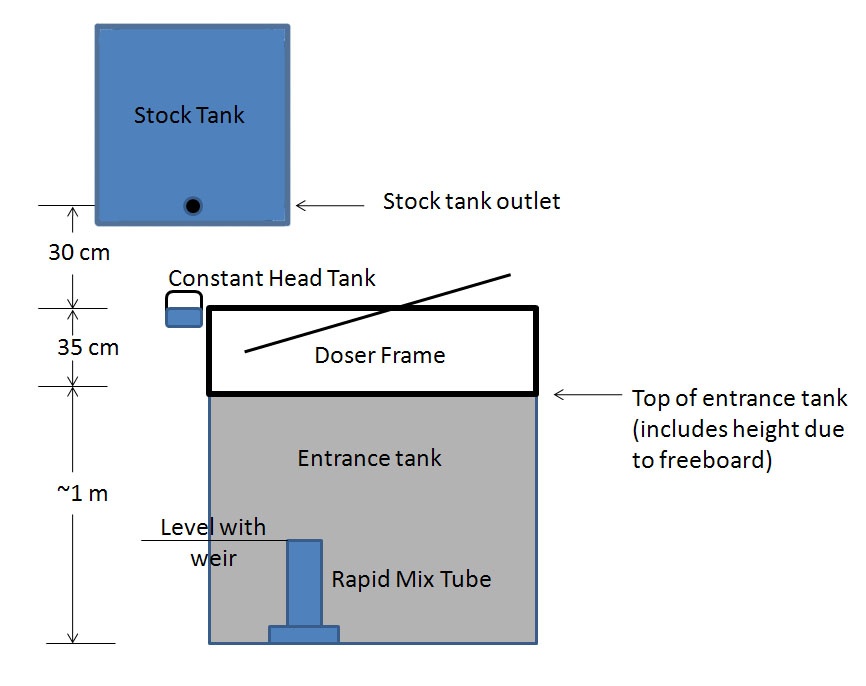

 The origin of the stock tank was determined relative to the entrance tank origin.  The following diagram shows the information that we used to determine the height of the stock tank.



 Using the Design Tool we drew the Alum stock tanks in AutoCAD:

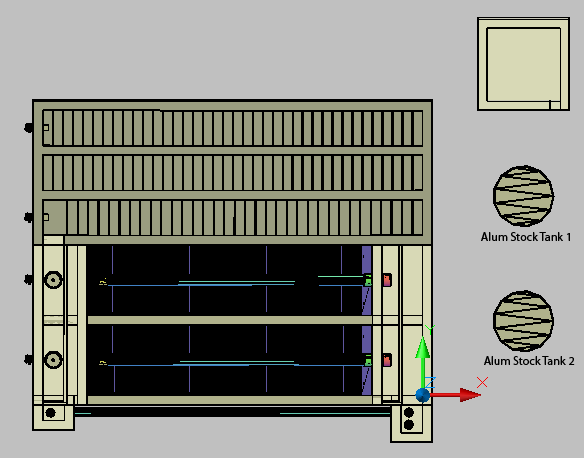

 Birds- eye view:

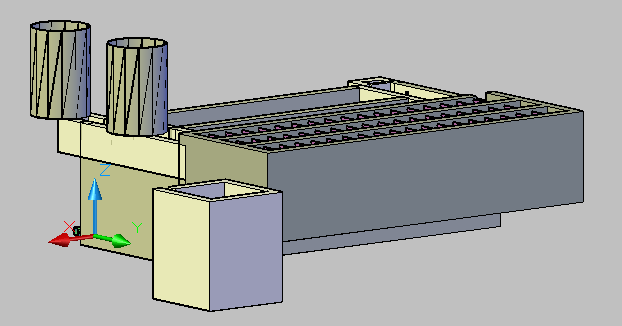

 Side view:
